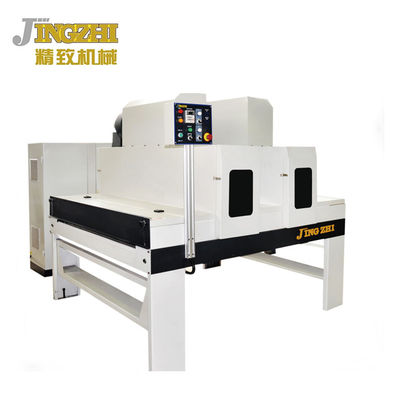

12KW Power UV Dryer Machine Energy Saving High Efficiency For Floor Furniture

I'm Online Chat Now

12KW Power UV Dryer Machine Energy Saving High Efficiency For Floor Furniture

12KW Power UV Dryer Machine Energy Saving High Efficiency For Floor Furniture
12KW Power UV Dryer Machine Energy Saving High Efficiency For Floor Furniture

Large Image :  12KW Power UV Dryer Machine Energy Saving High Efficiency For Floor Furniture

Product Details:
Place of Origin: Jiangsu
Brand Name: JINGZHI
Certification: CE
Model Number: JZ-1300#
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard shipping
Delivery Time: 35-40working day
Payment Terms: T/T
Supply Ability: 80sets/month
Detailed Product Description
Application: Floor Furniture Working Width: 1020 Mm
Working Thickness: 2-80 Mm Minimum Length: 300 Mm
High Light:

uv curing equipment

,

uv led dryer

Description

1. This equipment is mainly used for drying and semi-curing floor furniture primer.

2. Each double-lamp UV dryer is equipped with two 12KW electronic power sources, which can save 20% energy compared with traditional transformers.


Model JZ-1000#
Working width 1020 mm
Working thickness 2-80 mm
Minimum length 300 mm
Feeding speed 5-20 m/min
Feeding power 0.75 kw
The power of fan 0.4 kw*4/0.75 kw*4
Lamp power 18kw*3
Application Plywood, solid wood, particle board, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiber board, gypsum board, melamine board, stainless steel, vermiculite board


The electric box adopts integral design, and the middle is arranged in the heat dissipating device. Each group is equipped with 0.75KW fan, which can effectively extend the UV lamp tube. The electronic transformer (12KW)can instantly reach energy, which can save energy and can do super wear and super. The effect of matte, the conveyor uses stainless steel mesh belt.



It can 100% dry the UV filling , primer, sealer, the base coat and the top coat, according to the different type UV material, it can adjust the lamp separately and different speed , energy of the lamps.The paint can be dried instantly, it is so very good for line production.



The effective width of this machine is 1320MM, the length is 5M, and the weight is 900KG. The conveyor is conveyed by stainless steel mesh.Use newest carbon lamp,can save 20-25% electric power

Features:
A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.
B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.
C. Coating surface hardness increased, bright color.
D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.

  1. Adopting Korean UVLED chip, strictly implementing industry standards, pure gold wire, K1/3535/module package ,low energy consumption, high energy UVLED lamp bead module
  2. Adopt advanced frequency conversion water circulation cooling system to save energy and better protect UVLED chip and extend useful life (15000-20000 hours) .
  3. Green and environmental protection, no ozone, zero VOC emissions, no need to put into the exhaust equipment.
  4. High effective energy and adjustable, energy output 500-30000MW per square centimeter adjustable.
  5. Energy saving 60%-90% energy compared to ordinary UV lamps.
  6. Low temperature cold light source, the surface temperature of the cured product changes little, and will not cause deformation of the workpieces.
  7. Light sense intelligent control, instant switch, no need to preheat, ready to use, more efficient.
  8. It is easy to operate with mechanical transfer equipment and simple maintenance,fine curing effect, saving 5% paint, soft sanding effect can save 10% sandpaper.



SPECIFICATIONS

1. Working width 0-620mm
2. Working thickness 2-80mm
3. Minimum length of the work piece 300mm
4. Conveyor speed 5-20m/min
5. Machine size 2000mm×1450mm×1600mm



SPARE PARTS

  • spot cover Stainless steel pipe conveyor chain
  • Chain steel net conveyor
  • Packaging& Delivery
