Hot Air IR Dryer Machine , Infrared Paint Drying System For Wood Floor Surface

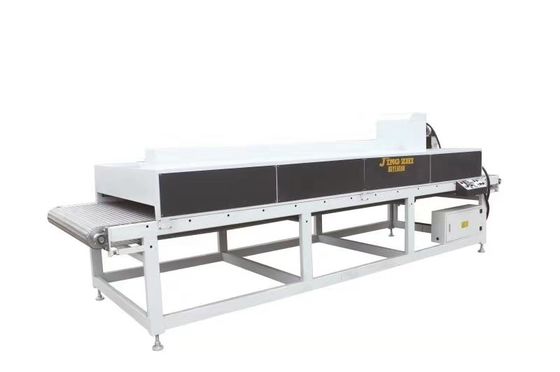

Large Image :  Hot Air IR Dryer Machine , Infrared Paint Drying System For Wood Floor Surface

Product Details:
Place of Origin: Jiangsu
Brand Name: JINGZHI
Certification: CE
Model Number: 1300#
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $15000-25000/set
Packaging Details: Standard shipping
Delivery Time: 35-45 working day
Payment Terms: T/T
Supply Ability: 50sets/month
Detailed Product Description
Dimension: 5000mm (length) * 1320mm (width) * 1000mm (height) Application: Remove The Water Mist On The Floor Surface In Rainy Weather And Soften The Hardness Of The Floor In Winter. Increase The Use Of Rubber Wheels...
Voltage: 380v Three Phase 50-60HZ Condition: New
Applications: Remove Dust And Static Electricity From The Floor Surface Working Speed: 15-25m/min
High Light:

screw conveyor dryer


infrared dryer


Wood Floor Heating leveling machine

Heating leveling machine


Brief Introduction:

  • The role of this machine is 1. In order to cope with the moisture in the air adheres to the floor surface during the rainy weather, which affects the paint adhesion. 2. Soften the hardness of the board surface and make the life of the rubber wheel more durable.
  • This machine the frame adopts 100mm * 50mm square tube.
  • It adopts Taiwan Xinyi brand 0.75KW gear reducer motor and adopts Taiwan Shihlin brand inverter.
  • Carbon fiber heating tube for heating, 1.5KW, instantaneous heating, power saving 25%.
  • The temperature control adopts independent control, which can accurately control the required temperature. The side cover of the oven is easy to disassemble and convenient for maintenance. (Controlled at about 45 degrees)
  • Temperature control can be adjusted from 0 ° to a maximum of 100 °.
  • Oven cover adopts side opening mode, which is convenient for lamp tube disassembly and maintenance.

Competitive Advantage:


We are the best coating manufacturer in China, with a market share of 60% in China. The products are sold to the United States, Brazil, Africa, the Netherlands, South Korea, and India ... Our equipment configuration is very high, and the dryer uses electronic power supply. 25% energy saving, higher energy intensity and faster production speed. The roller coater is very precise, and the surface effect of the product is very good, without horizontal stripes. We have a strong after-sales team, no matter where you are on the earth, we can provide the best service




model JZ-1300#
Number of machines 1
Colour mode white
Working width 1300mm
Painting speed 15-25 meters per minute
Power on 18.4KW



JINGZHI Machinery Manufacturing Co., Ltd. is located in Huaqiao Industrial Park, Suzhou City. We are an enterprise combining the research, design, development, manufacturing, sales and technical services of painting and printing machinery.


1. Our machinery is widely used in printing and coating the plastic floor, solid wood, composite floor, wallboard, plywood, door board, foaming board, medium and high-density board, calcium silicate board, wood, modular furniture, etc. Our machine applies to UV.PU.NC. Waterborne paint.

2. The machine type: Precision roller coating machine, Precision color brush machine, Putty filling machine, Curtain machine, UV dryer, LED dryer, Hot air dryer, Vacuum spraying machine, Sanding machine, Polishing machine, Jet air dryer.

3. Our company made a number of product patents, some of which had filled a number of gaps in technology in China.

4. Our foreign customers: Iran, Brazil, Japan, USA, Netherlands, Vietnam, Malaysia, Indonesia, Ethiopia, etc.

In accordance with customers' actual production needs, our company provides the most scientific and rigorous production process and equipment for every customer. Our products not only achieve the best effect of painting but also thoroughly solve many production problems, such as environmental pollution, low efficiency & high cost, which are caused by the traditional painting process.
