Place of Origin: | China |
---|---|
Brand Name: | FLE |
Certification: | CE |
Model Number: | FLE-600# FLE-1000# FLE-1300# |
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Standard Packing |
Delivery Time: | 40-60 working days |
Payment Terms: | T/T L/C |
Supply Ability: | 50sets/month |
Weight: | 1500kg | Voltage: | 380v Three Phase 50-60HZ |
---|---|---|---|
Condition: | New | Warranty: | One Year |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Working Speed: | 15-25m/min |
High Light: | 1500kg UV Roller Coating Machine,50HZ UV Roller Coating Machine,UV hot melt roller coating machine |

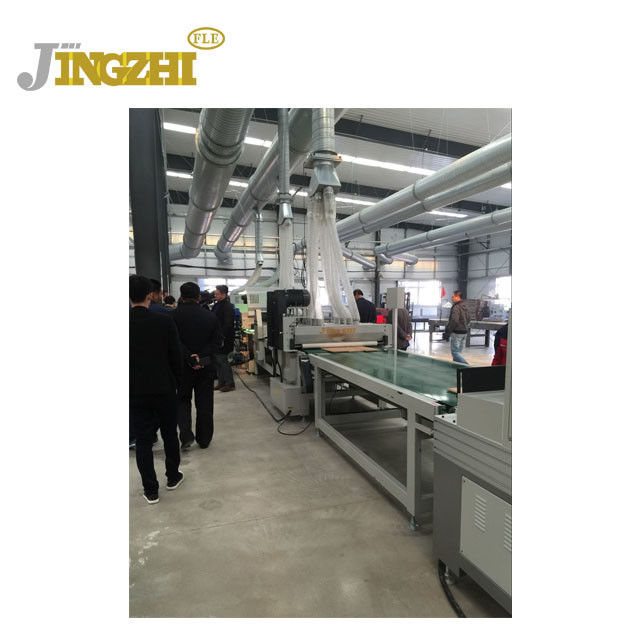

Double Dust Brush Sticks Roll To Roll Coating Machine Electrostatic Precipitator
Competitive Advantage: We are the best coating manufacturer in China, with a market share of 60% in China. The products are sold to the United States, Brazil, Africa, the Netherlands, South Korea, and India ... Our equipment configuration is very high, and the dryer uses electronic power supply. 25% energy saving, higher energy intensity and faster production speed. The roller coater is very precise, and the surface effect of the product is very good, without horizontal stripes. We have a strong after-sales team, no matter where you are on the earth, we can provide the best services;
A. Function: this machine is suitable for surface coating of all kinds of flat plates (such as board furniture, solid wood composite floor, plastic decorative plate, metal, etc.).
B. Features: the coating wheel, quantitative roller and conveyor belt are all controlled by independent inverter and reducer, so that the smoothness and film thickness of the paint surface can be more accurately controlled.The coating wheel is made of imported rubber material, equipped with high-quality electroplating quantitative rolling and imported stainless steel scraper, the Angle is adjusted by the micro RV gear reducer, the distance between the electric light wheel and the rubber wheel is adjusted by the micro RV gear reducer, the accuracy is accurate.This machine is suitable for all kinds of paint, such as: UV, PU, NC and waterborne paint, paint can be recycled.C. Optional: this machine can be fully automated controlled by PLC microcomputer;Automatic lifting device can be used for lifting.
Model | working width | working thickness | minimum length | feeding speed | coating roller power | doctor roller | feeding power | L*W*H(MM) |
600# | 600MM | 3-80MM | 300MM | 0-25M/MIN | 0.75KW | 0.75KW | 0.75KW | 1600*2000*1550 |
1000# | 1000MM | 3-80MM | 300MM | 0-25M/MIN | 1.5KW | 0.75KW | 1.5KW | 1600*2450*1550 |
1300# | 1300MM | 3-80MM | 300MM | 0-25M/MIN | 1.5KW | 0.75KW | 1.5KW | 1600*2750*1550 |
Suzhou FLE international trade co.,ltd. is located in Suzhou City. We are an enterprise combining the research, design, development, manufacturing, sales and technical services of painting and printing machinery.
1. Our machinery is widely used in printing and coating the plastic floor, solid wood, composite floor, wallboard, plywood, door board, foaming board, medium and high-density board, calcium silicate board, wood, modular furniture, etc. Our machine applies to UV.PU.NC. Waterborne paint.
2. The machine type: Precision roller coating machine, Precision color brush machine, Putty filling machine, Curtain machine, UV dryer, LED dryer, Hot air dryer, Vacuum spraying machine, Sanding machine, Polishing machine, Jet air dryer.
3. Our company made a number of product patents, some of which had filled a number of gaps in technology in China.
4. Our foreign customers: Iran, Brazil, Japan, USA, Netherlands, Vietnam, Malaysia, Indonesia, Ethiopia, etc.
In accordance with customers' actual production needs, our company provides the most scientific and rigorous production process and equipment for every customer. Our products not only achieve the best effect of painting but also thoroughly solve many production problems, such as environmental pollution, low efficiency & high cost, which are caused by the traditional painting process.
