Automatic UV Paint Line Plastic Coat Machine For SPC WPC Flooring

Description

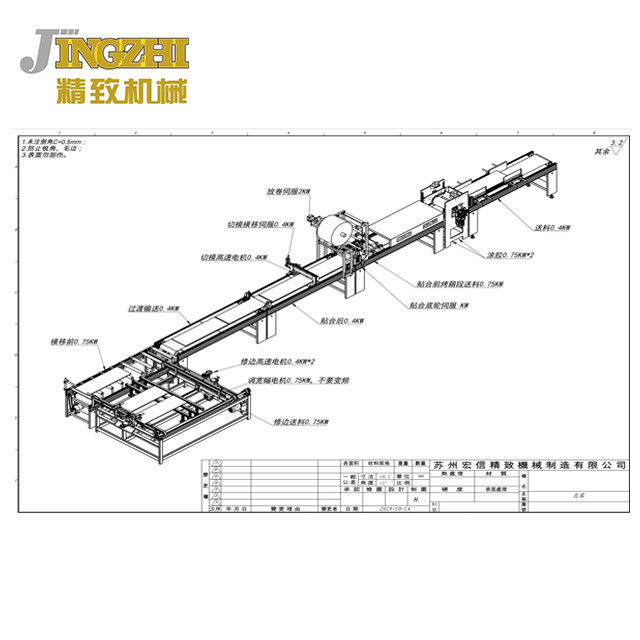

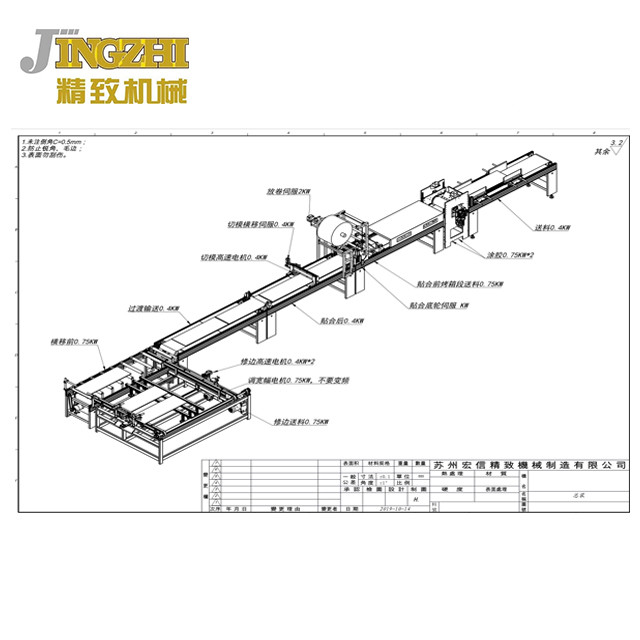

This line includes

1) feeding conveyor with dust cleaner,

2) glue coating machine (cold glue & PSA as optional),

3) preheating machine,

4) laminating & cutter,

5) speed up conveyor,

6) 90 degree conveyor,

7) two ends trimmer.

8)plate turning MACHINE

9) hacking machine

Electrical parts

1) TAIWAN SHILIN inverters

2) SCHNEIDER ELECTRIAL PARTS

3) XINJIE PLC OR SAME LEVEL BRAND

4) Touch screen

Technical parameters

Number of squares per floor:1.2m*0.163m=0.196m²

Processing meters 50*60=3000m/h

Floor tiles 3000/1.2=2500 tiles 2500/8=313 packs

0.196*8=1.57m2 per square

Daily production (based on 10-hour shift) 313*10=3130 bales/shift

Daily square number 3130*1.57m2=4914m2 (actual capacity is 4914*0.9=4400m2)

Gelatinization amount: 0.035*4400=154 kg/day

Our service

1. Our company understands how important it is for our customers to choose the appropriate and cost-effective machines. We are ready to help customers to find better solutions. Please tell us what you need, our people always here.

2. For all your request, we will supply best suggestion and solution on time. Any time, you have any inquiry, please feel free to contact us. You could contact us by e-mail, or by skype, whatsapp, phone.

Customers are always welcome to visit our factory to inspect the machine. We will pick you up from airport or train station.

3. All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.

4. Problems, assembly or operation? Please tell us. we will send you the relevant user manuals or instructions immediately to you. We also have engineers available to service machine overseas.

Our customer

Company profile

Suzhou FLE international trade Co., Ltd. is located in Huaqiao Industrial Park, Suzhou City. We are an enterprise combining the research, design, development, manufacturing, sales and technical services of painting and printing machinery.

1. Our machinery is widely used in printing and coating the plastic floor, solid wood, composite floor, wall board, plywood, door board, foaming board, medium and high density board, calcium silicate board, wood, modular furniture, etc. Our machine apply to UV.PU.NC. Waterborne paint.

2. The machine type:Precision roller coating machine,Precision color brush machine,Puty filling machine,Curtain machine, UV dryer,LED dryer, Hot air dryer, Vacuum spraying machine,Sanding machine,Polishing machine,Jet air dryer.

3. Our company made a number of product patents,some of which had filled a number of gaps in technology in China.

4. Our foreign customers: Iran, Brazil, Japan, USA, Netherlands,Vietnam, Malaysia, Indonesia,Ethiopia etc.

In accordance with customers' actual production needs, our company provides the most scientific and rigorous production process and equipment for every customer. Our products not only achieve the best effect of painting, but also thoroughly solve many production problems, such as environmental pollution, low efficiency & high cost, which are caused by traditional painting process.
