Specializing in floor production and supporting automation equipment.
| Place of Origin: | China |
|---|---|
| Brand Name: | FLE |
| Certification: | CE |
| Model Number: | FLE-600# FLE-1000# FLE-1300# |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Standard Packing |
| Delivery Time: | 40-60 working days |
| Payment Terms: | T/T L/C |
| Supply Ability: | 80sets/month |
| Feeding Power: | 0.75 Kw | Feeding Speed: | 5-20 M/min |
|---|---|---|---|
| Working Thickness: | 2-80 Mm | Lamp Power: | 18kw*3 |
| High Light: | Roll offline uv coating machine,Paint offline uv coating machine,PVC Floor paint finishing equipment |
||

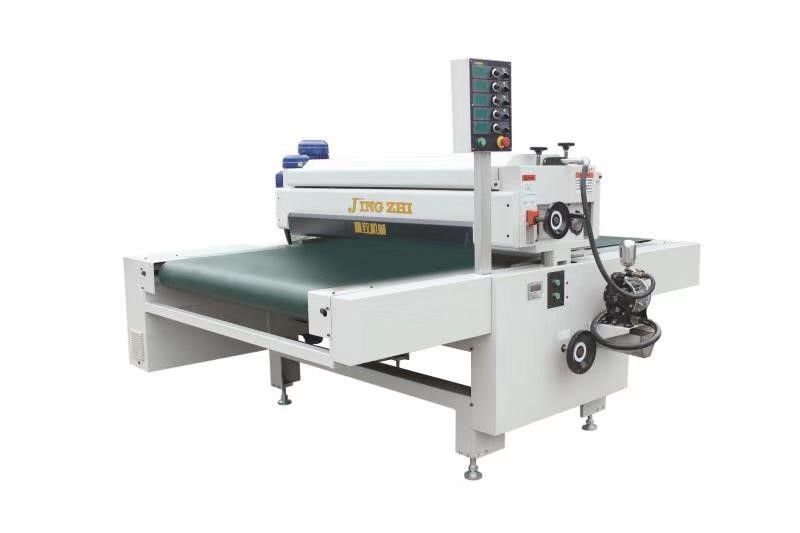

Semi - Cured UV Dryer Machine Low Power Consumption Integral Design High Performance
Descripition
The electric box adopts integral design, and the middle is arranged in the heat dissipating device. Each group is equipped with 0.75KW fan, which can effectively extend the UV lamp tube. The electronic transformer (12KW)can instantly reach energy, which can save energy and can do super wear and super. The effect of matte, the conveyor uses stainless steel mesh belt.
Technical parameters
|
Working width |
1320 mm 1020mm 620mm |
|
Working thickness |
2-80 mm |
|
Minimum length |
300 mm |
|
Feeding speed |
5-20 m/min |
|
Feeding power |
0.75 kw |
|
The power of fan |
0.4 kw*4/0.75 kw*4 |
|
Lamp power |
18kw*3 |
|
Application |
Plywood, solid wood, particle board, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiber board, gypsum board, melamine board, stainless steel, vermiculite board |
Features
A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.
B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.
C. Coating surface hardness increased, bright color.
D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.
E.Adopting Korean UVLED chip, strictly implementing industry standards, pure gold wire, K1/3535/module package ,low energy consumption, high energy UVLED lamp bead module
F.Adopt advanced frequency conversion water circulation cooling system to save energy and better protect UVLED chip and extend useful life (15000-20000 hours) .
G.Green and environmental protection, no ozone, zero VOC emissions, no need to put into the exhaust equipment.
H.High effective energy and adjustable, energy output 500-30000MW per square centimeter adjustable.
I.Energy saving 60%-90% energy compared to ordinary UV lamps.
J.Low temperature cold light source, the surface temperature of the cured product changes little, and will not cause deformation of the workpieces.
K.Light sense intelligent control, instant switch, no need to preheat, ready to use, more efficient.
L.It is easy to operate with mechanical transfer equipment and simple maintenance,fine curing effect, saving 5% paint, soft sanding effect can save 10% sandpaper.
