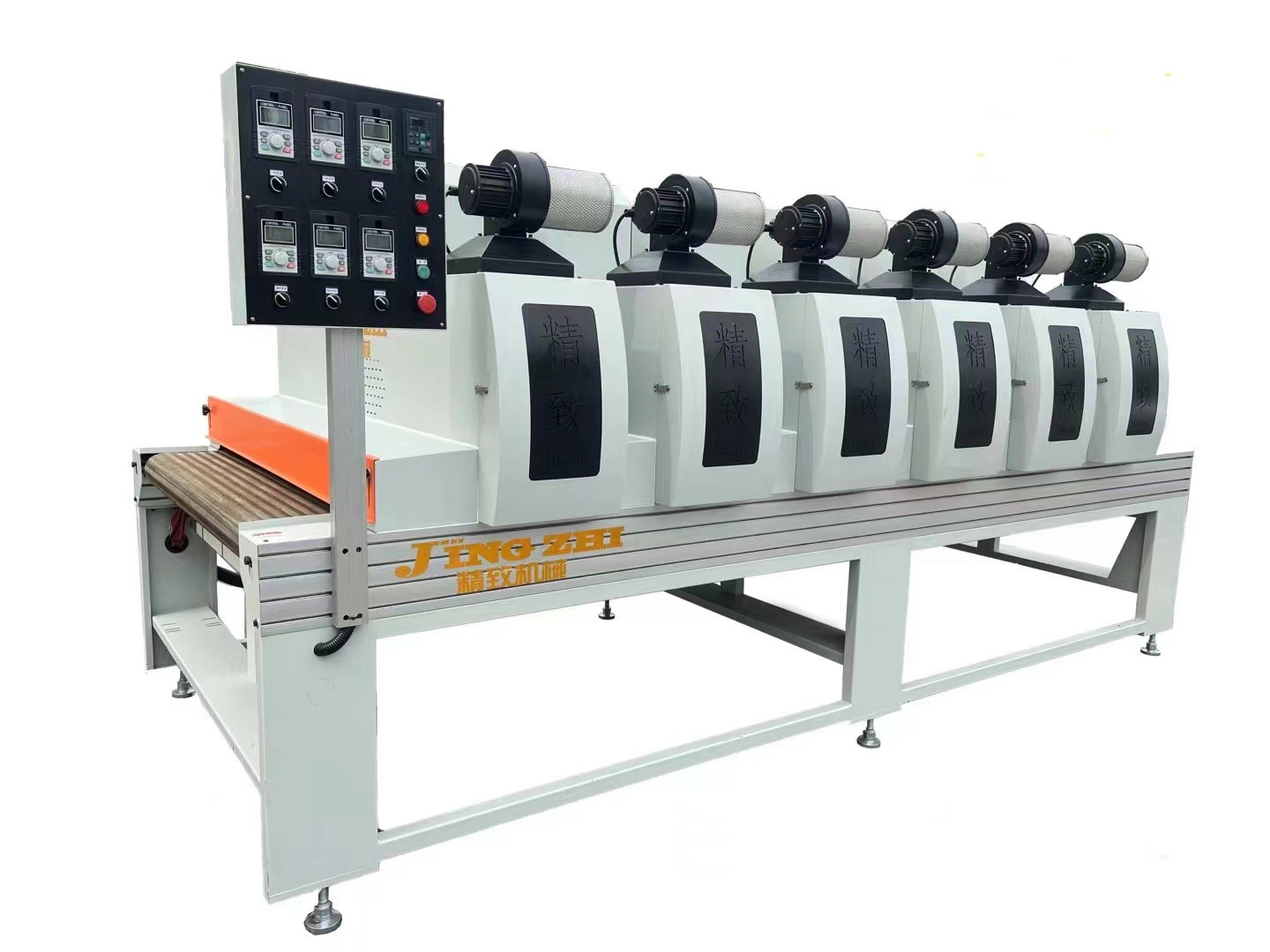

1200kg UV Varnish Machine Roller Coating Equipment

Basic Information

Place of Origin:	China
Brand Name:	FLE
Certification:	CE
Model Number:	FLE-600#

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Standard Packing
Delivery Time:	40-60 working days
Payment Terms:	T/T L/C
Supply Ability:	80sets/month

Get Best Price Contact Now

Name:	Three Lamps UV Dryer	Size:	200014501600mm
Custome:	America Brazil India Ethiopia Vietnam	Power:	35.85kw
Weight:	1200kg	Material:	Steel
After Sales:	Ice Provided: Engineers Available To Service Machinery Overseas
Highlight:	1200kg uv varnish machine , Roller uv varnish machine , Varnish roller coating equipment

UV curing oven with Mercury lamp and Gallium lamp for uv paint curing solid color and transparent color

1. Equipped with 18kw electronic power supply, the energy intensity is much higher than the ordinary traditional transformer, can achieve rapid drying.

2. It has cooling fan with well ventilated inside the separate lamp box, it also has type of high-power exhaust design that can extend the service life of the UV lamp, transformer and capacitor.
3. It can be chosen with the PLC, automatical elevator, separate electronic box and more automatical choosing unit.

The electric box adopts integral design, and the middle is arranged in the heat dissipating device. Each group is equipped with 0.75KW fan, which can effectively extend the UV lamp tube. The electronic transformer (12KW)can instantly reach energy, which can save energy and can do super wear and super. The effect of matte, the conveyor uses stainless steel mesh belt.

It can 100% dry the UV filling , primer, sealer, the base coat and the top coat, according to the different type UV material, it can adjust the lamp separately and different speed , energy of the lamps.The paint can be dried instantly, it is so very good for line production.

The effective width of this machine is 1320MM, the length is 5M, and the weight is 900KG. The conveyor is conveyed by stainless steel mesh.Use newest carbon lamp,can save 20-25% electric power

Model	JZ-1000#
Working width	1020 mm
Working thickness	2-80 mm
Minimum length	300 mm
Feeding speed	5-20 m/min
Feeding power	0.75 kw
The power of fan	0.4 kw4/0.75 kw4
Lamp power	18kw*3
Application	Plywood, solid wood, particle board, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiber board, gypsum board, melamine board, stainless steel, vermiculite board

Features:

A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.

B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.

C. Coating surface hardness increased, bright color.

D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.

Adopting Korean UVLED chip, strictly implementing industry standards, pure gold wire, K1/3535/module package ,low energy consumption, high energy UVLED lamp bead module
Adopt advanced frequency conversion water circulation cooling system to save energy and better protect UVLED chip and extend useful life (15000-20000 hours) .
Green and environmental protection, no ozone, zero VOC emissions, no need to put into the exhaust equipment.
High effective energy and adjustable, energy output 500-30000MW per square centimeter adjustable.
Energy saving 60%-90% energy compared to ordinary UV lamps.
Low temperature cold light source, the surface temperature of the cured product changes little, and will not cause deformation of the workpieces.
Light sense intelligent control, instant switch, no need to preheat, ready to use, more efficient.
It is easy to operate with mechanical transfer equipment and simple maintenance,fine curing effect, saving 5% paint, soft sanding effect can save 10% sandpaper.

SPECIFICATIONS

1. Working width	0-620mm
2. Working thickness	2-80mm
3. Minimum length of the work piece	300mm
4. Conveyor speed	5-20m/min
5. Machine size	2000mm×1450mm×1600mm

SPARE PARTS

spot cover Stainless steel pipe conveyor chain
Chain steel net conveyor
Packaging& Delivery

FAQ
1. Is your company a factory or a trading company?
A: We are a factory.
2. What's your warranty?
A: 12 months.
3. What's your lead time?
A: Normal orders within 40 business days. Customized orders, 40-60 business days.
4. What's your payment term?
A: 30% T/T deposit, the balance should be paid before delivery after inspection.
5. Do you inspect machines before sending?
A: Yes, all our machine should pass the strict inspection by our QC department before shipping.Customers can also come to our factory directly to test machines before shipping.

6. What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
