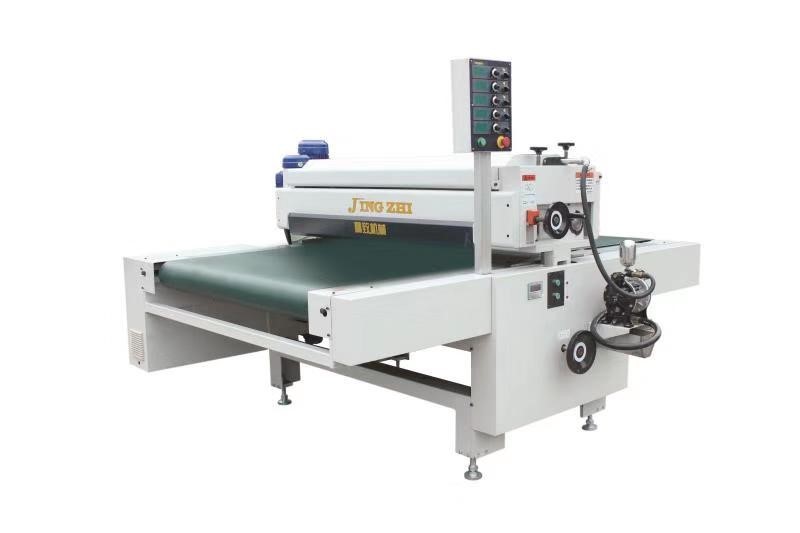

12KW Spot UV Machine Offline Aqueous Coater For Floor Furniture

The electric box adopts integral design, and the middle is arranged in the heat dissipating device. Each group is equipped with 0.75KW fan, which can effectively extend the UV lamp tube. The electronic transformer (12KW)can instantly reach energy, which can save energy and can do super wear and super. The effect of matte, the conveyor uses stainless steel mesh belt.

It can 100% dry the UV filling , primer, sealer, the base coat and the top coat, according to the different type UV material, it can adjust the lamp separately and different speed , energy of the lamps.The paint can be dried instantly, it is so very good for line production.

1. Adopting Korean UVLED chip, strictly implementing industry standards, pure gold wire, K1/3535/module package ,low energy consumption, high energy UVLED lamp bead module
2. Adopt advanced frequency conversion water circulation cooling system to save energy and better protect UVLED chip and extend useful life (15000-20000 hours) .
3. Green and environmental protection, no ozone, zero VOC emissions, no need to put into the exhaust equipment.
4. High effective energy and adjustable, energy output 500-30000MW per square centimeter adjustable.
5. Energy saving 60%-90% energy compared to ordinary UV lamps.
6. Low temperature cold light source, the surface temperature of the cured product changes little, and will not cause deformation of the workpieces.
7. Light sense intelligent control, instant switch, no need to preheat, ready to use, more efficient.
8. It is easy to operate with mechanical transfer equipment and simple maintenance,fine curing effect, saving 5% paint, soft sanding effect can save 10% sandpaper.
