Specializing in floor production and supporting automation equipment.
| Place of Origin: | China |
|---|---|
| Brand Name: | FLE |
| Certification: | CE |
| Model Number: | JZ-1300# |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Standard Packing |
| Delivery Time: | 40-60 working days |
| Payment Terms: | T/T L/C |
| Supply Ability: | 80sets/month |
| Name: | Three Lamps UV Dryer | Type: | JZ-600# |
|---|---|---|---|
| Size: | 2000*1450*1600mm | Power: | 35.85kw |
| High Light: | LVT Floor UV Paint Line,18kw UV Paint Line,LVT Floor offline uv coating machine |
||

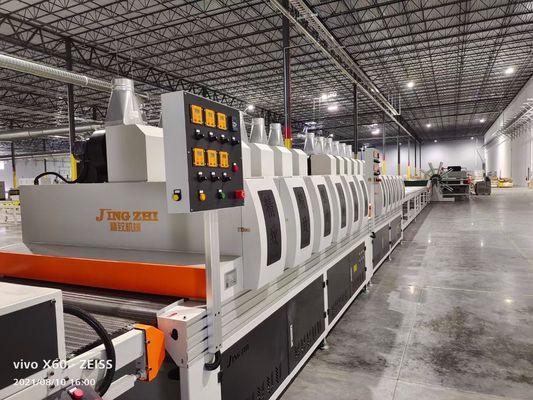

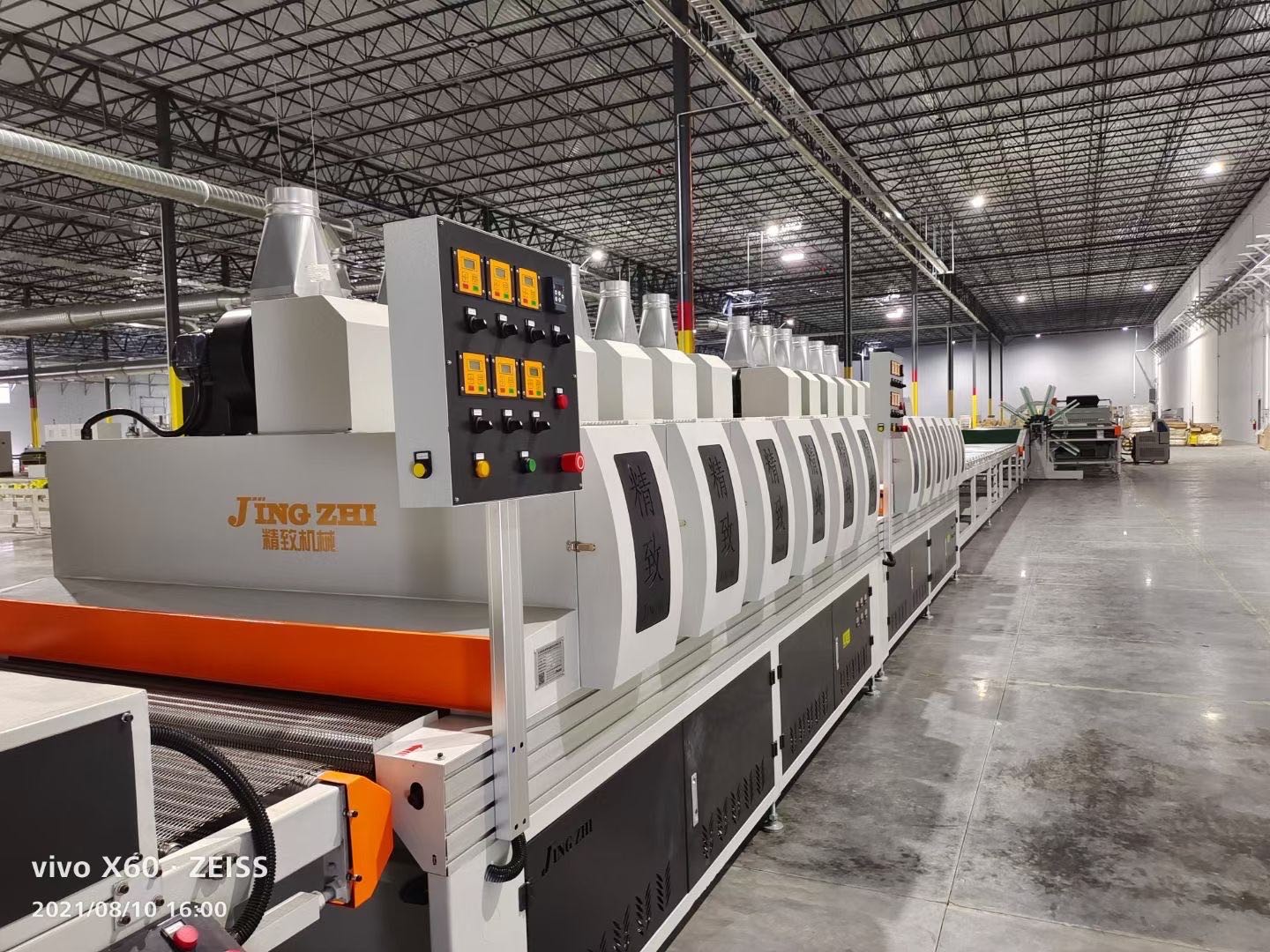

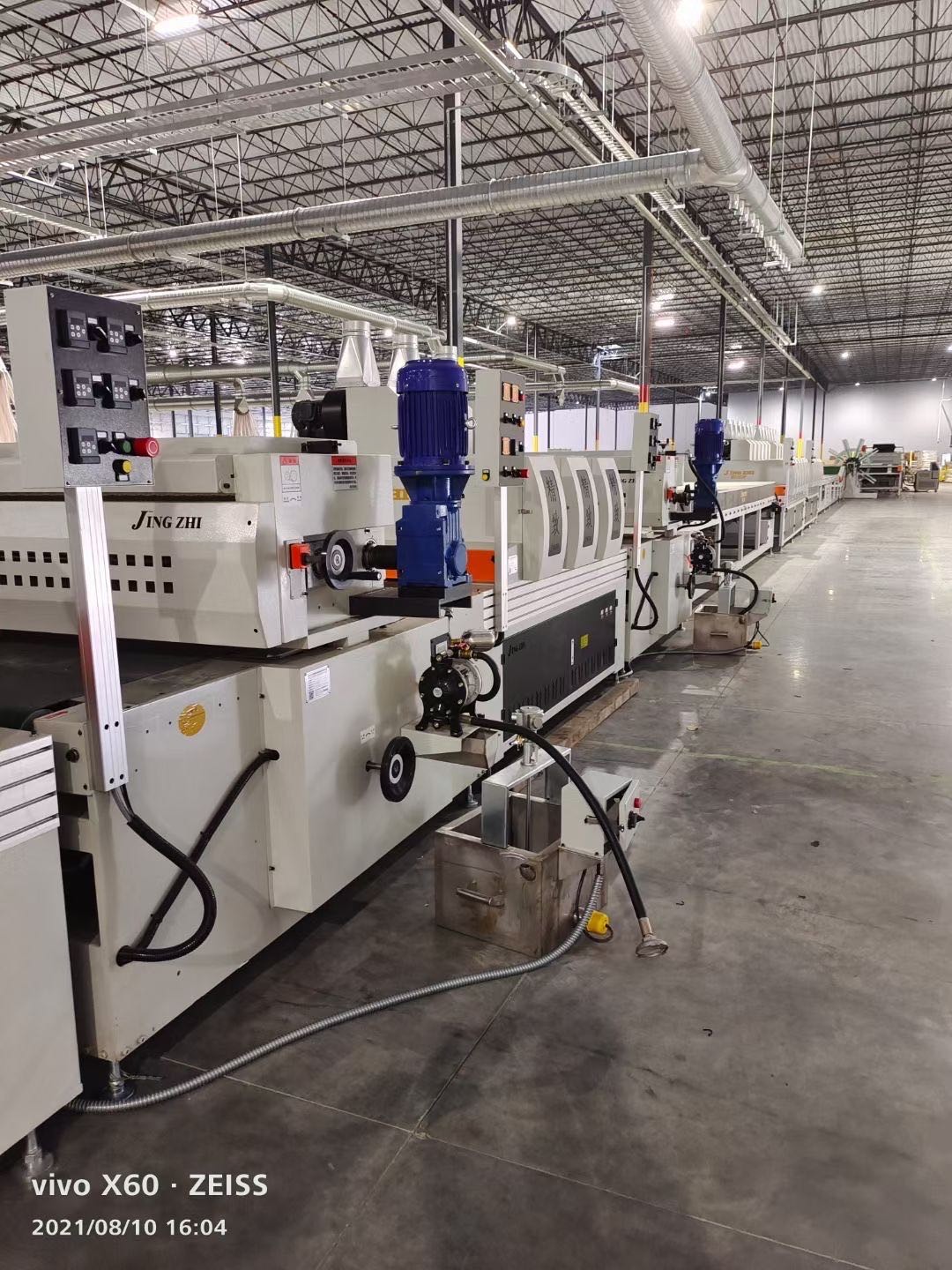

UV curing oven with Mercury lamp and Gallium lamp for uv paint curing solid color and transparent color
1. Equipped with 18kw electronic power supply, the energy intensity is much higher than the ordinary traditional transformer, can achieve rapid drying.
2. It has cooling fan with well ventilated inside the separate lamp box, it also has type of high-power exhaust design that can extend the service life of the UV lamp, transformer and capacitor.
3. It can be chosen with the PLC, automatical elevator, separate electronic box and more automatical choosing unit.
The electric box adopts integral design, and the middle is arranged in the heat dissipating device. Each group is equipped with 0.75KW fan, which can effectively extend the UV lamp tube. The electronic transformer (12KW)can instantly reach energy, which can save energy and can do super wear and super. The effect of matte, the conveyor uses stainless steel mesh belt.
It can 100% dry the UV filling , primer, sealer, the base coat and the top coat, according to the different type UV material, it can adjust the lamp separately and different speed , energy of the lamps.The paint can be dried instantly, it is so very good for line production.
| Model | JZ-1000# |
| Working width | 1020 mm |
| Working thickness | 2-80 mm |
| Minimum length | 300 mm |
| Feeding speed | 5-20 m/min |
| Feeding power | 0.75 kw |
| The power of fan | 0.4 kw*4/0.75 kw*4 |
| Lamp power | 18kw*3 |
| Application | Plywood, solid wood, particle board, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiber board, gypsum board, melamine board, stainless steel, vermiculite board |
SPECIFICATIONS
| 1. Working width | 0-620mm |
| 2. Working thickness | 2-80mm |
| 3. Minimum length of the work piece | 300mm |
| 4. Conveyor speed | 5-20m/min |
| 5. Machine size | 2000mm×1450mm×1600mm |
SPARE PARTS
FAQ
1. Is your company a factory or a trading company?
A: We are a factory.
2. What's your warranty?
A: 12 months.
3. What's your lead time?
A: Normal orders within 40 business days. Customized orders, 40-60 business days.
4. What's your payment term?
A: 30% T/T deposit, the balance should be paid before delivery after inspection.
5. Do you inspect machines before sending?
A: Yes, all our machine should pass the strict inspection by our QC department before shipping.Customers can also come to our factory directly to test machines before shipping.
6. What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
