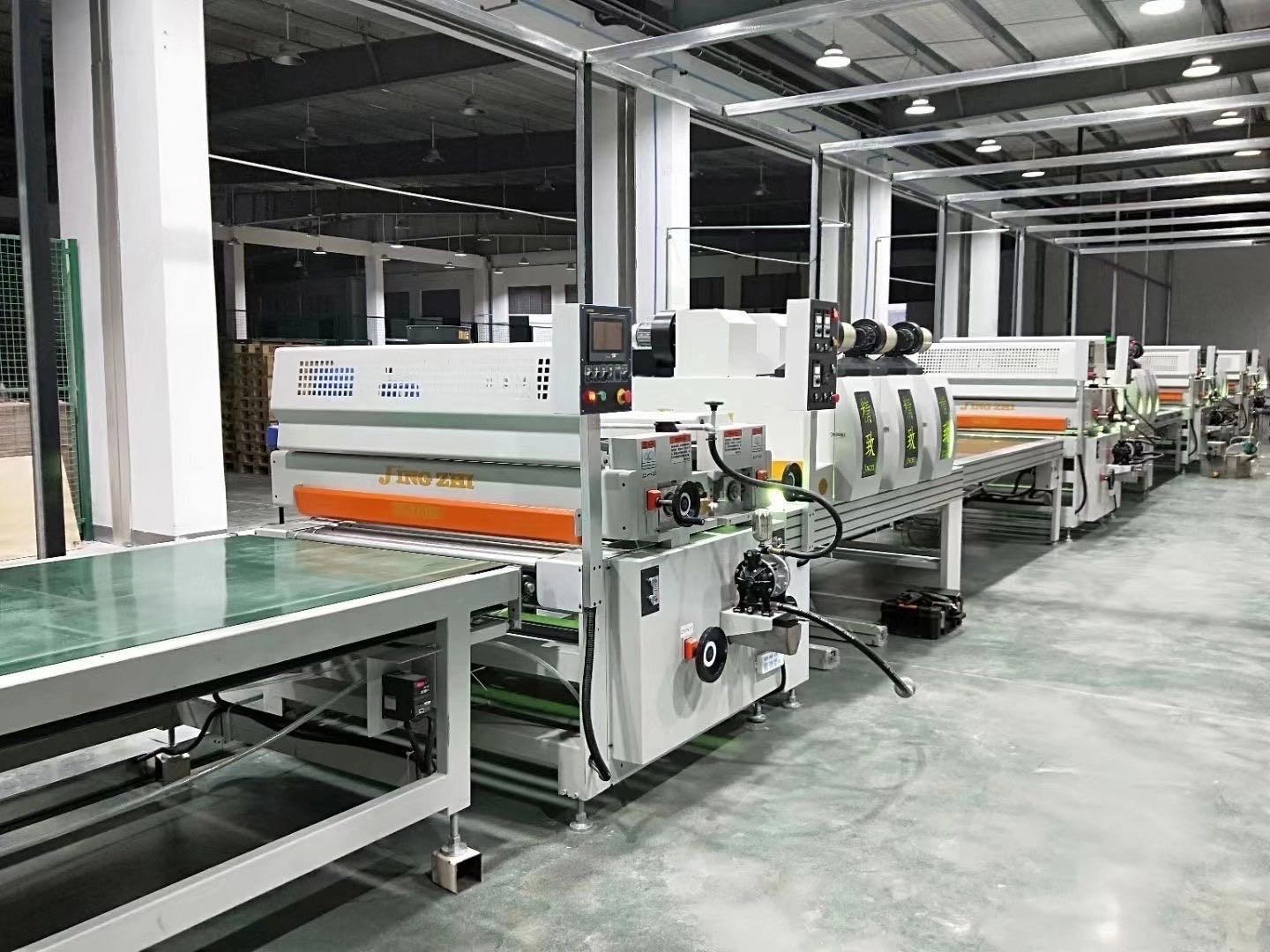

Automatic Plywood Offline UV Coating Line Machine 19.15KW

Automatic Plywood Offline UV Coating Line Machine 19.15KW
Automatic Plywood Offline UV Coating Line Machine 19.15KW Automatic Plywood Offline UV Coating Line Machine 19.15KW Automatic Plywood Offline UV Coating Line Machine 19.15KW
Basic Information
Place of Origin: China
Brand Name: FLE
Certification: CE
Model Number: JZ-600# JZ-1000# JZ-1300#
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 40-60 working days
Payment Terms: T/T L/C
Supply Ability: 100sets/month
Get Best Price Contact Now
Name: IR Heating Oven For Paint Leveling And Water-base Power: 19.15KW
Condition: New Warranty: 1year
Type: Automatic Feeding Speed: 0-20 M/min
After-sales: Engineers Available To Service Machinery Overseas Material: Steel
Highlight:

19.15KW UV Coating Line

,

Plywood UV Coating Line

,

Plywood offline uv coating machine

Independent Temperature Control IR Dryer Machine Accelerate Paint Attenuant Volatilization

Description

1. This machine is designed for smooth the surface of the board after curtaining,and also it can have the water paint to dry
2. Using the infrared heating theory,it can accelerate the volatilization of the attenuant of the paint and shorten the time for drying.



Technical parameters
Model JZ-600# JZ-1000# JZ-1300#
Working width 620 mm/920mm/1320mm
Working thickness 2-80 mm
Minimum length 300 mm
Feeding speed 5-20 m/min
Feeding power 0.75 kw
Lamp power 1.5kw
Application Plywood, solid wood, particle board, HPL, PVC, WPC, SPC, metal, glass, plastic, ceramic tile, calcium silicate board, cement fiber board, gypsum board, melamine board, stainless steel, vermiculite board




Features
1. The rack adopts 100mm * 50mm party management, sheet metal processing molding.
2. Adopt Taiwan 1.5kw gear reducer motor, adopt Taiwan shilin brand frequency converter control.
3. Carbon fiber quick-heating heating pipe is adopted for heating. Each 1.5kw pipe can save energy efficiently. Compared with the original ceramic pipe, it can save energy by 20-25%.
4. Temperature control adopts independent control, which can accurately control the required temperature.
5. The sheet metal of the machine is formed by laser cutting and CNC bending welding.
6. Frame and sheet metal shell are treated with spray paint
