SPC Floor Recycling System Miller and Shadder

Recycling Line Technical Parameter

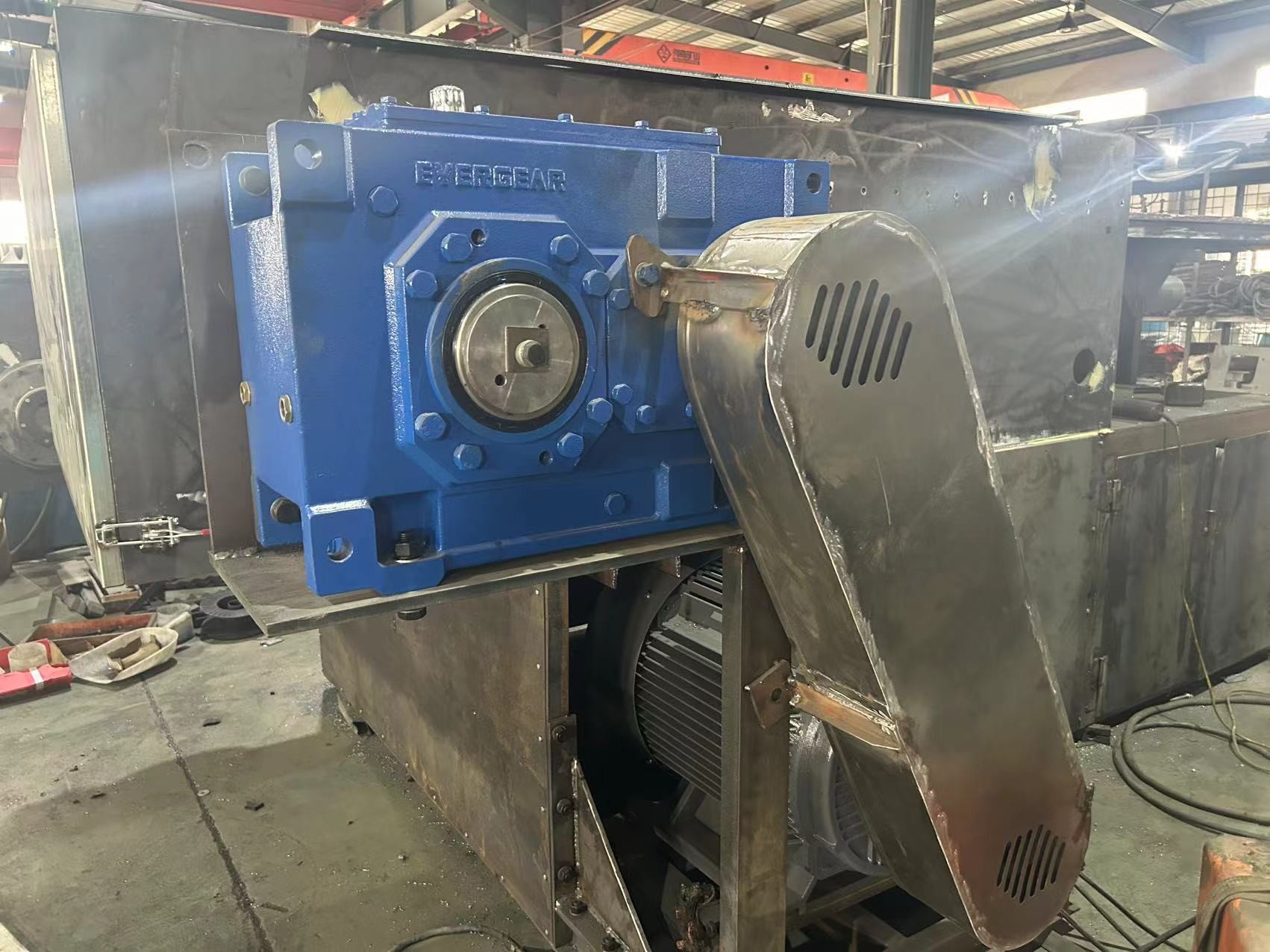

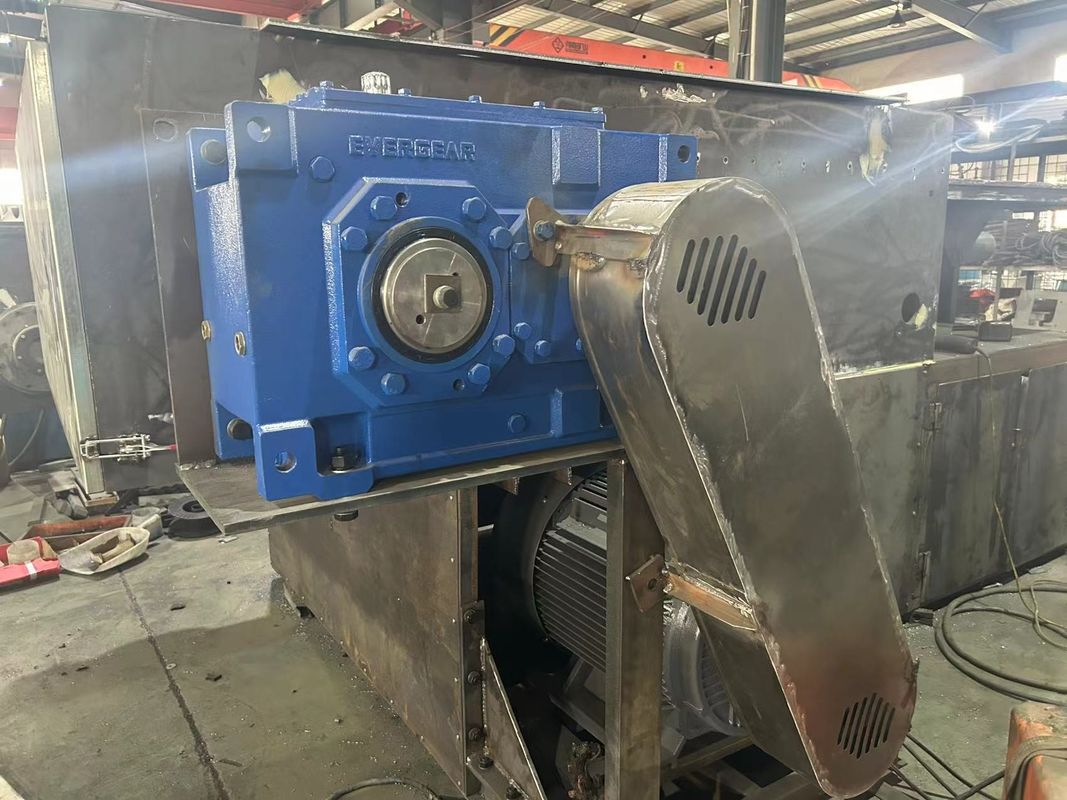

Shredder configuration

Breaker configuration

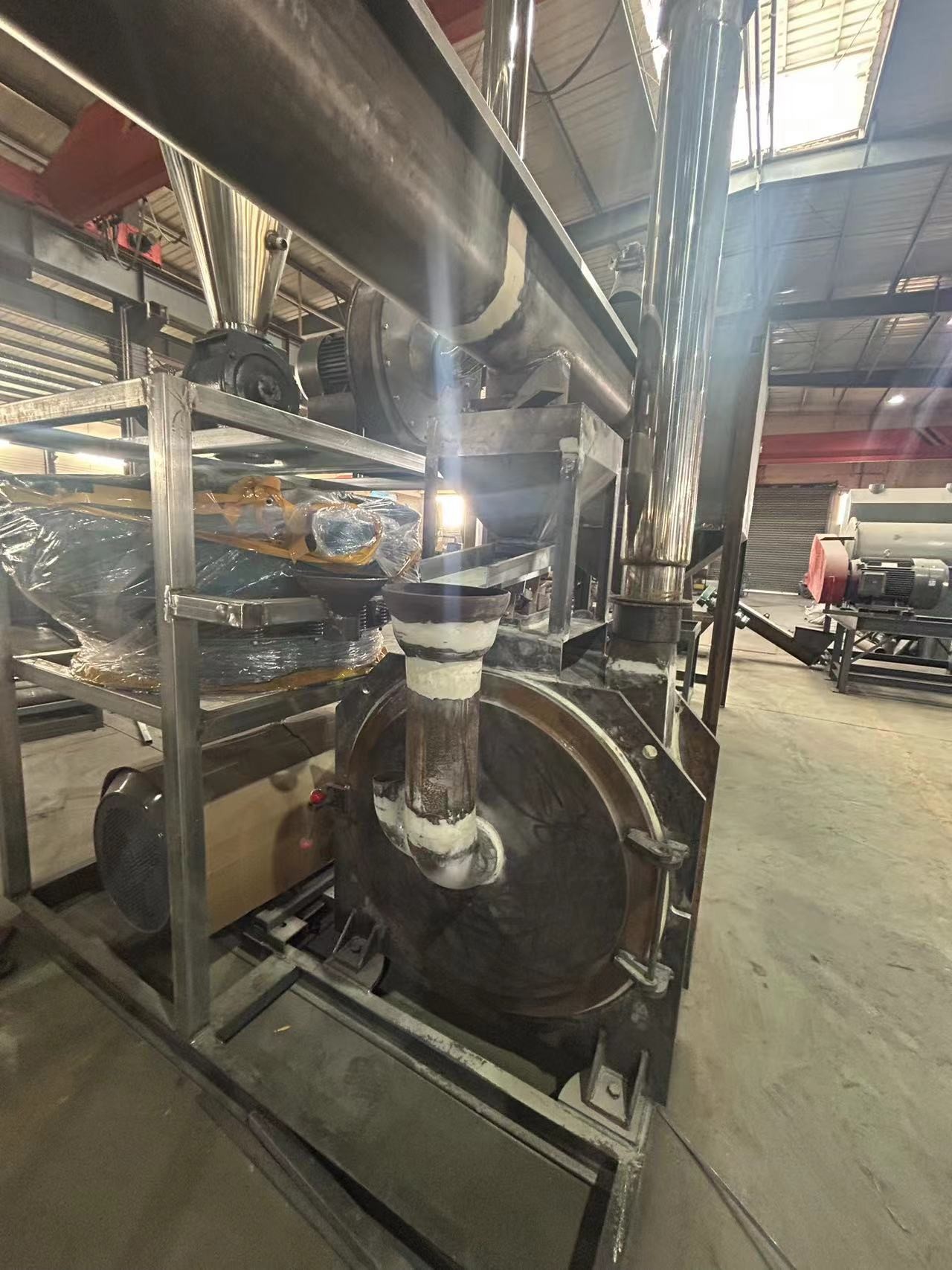

Mill configuration

Vibrating Screen configuration

Remarks: the number of items is optional, customization is supported, and the height can be increased and added.

Cyclone configuration

The  main  function  of  cyclone  is  gas-solid  separation.  Improving the separation efficiency of cyclone is an important condition to reduce the internal and external circulation of raw materials, reduce heat loss and strengthen gas-solid heat exchange. The cyclone separates the dust from the airflow by using the inertia force of the dust and the centrifugal force generated  by  the  rotation  of  the  dusty  airflow. The  company  adopts stainless  steel  water-cooled  cyclone  which  is  durable. Equipped with 2.2kw fan.

Fan configuration

The  suction  fan  is  mainly  composed  of  motor,  blades,  casing,  air  inlet filter screen and air nozzle. The name of the suction fan is Si Yi, that is, the induced draft fan and the exhaust fan. By blowing away the medium (usually  air),  a  low-pressure  area  is  formed  inside  the  fan.  In  order  to balance the pressure, it is necessary to suck air from the air inlet of the fan to achieve pressure balance.With double functions of blowing and sucking, one machine can be used for both suction and blowing;

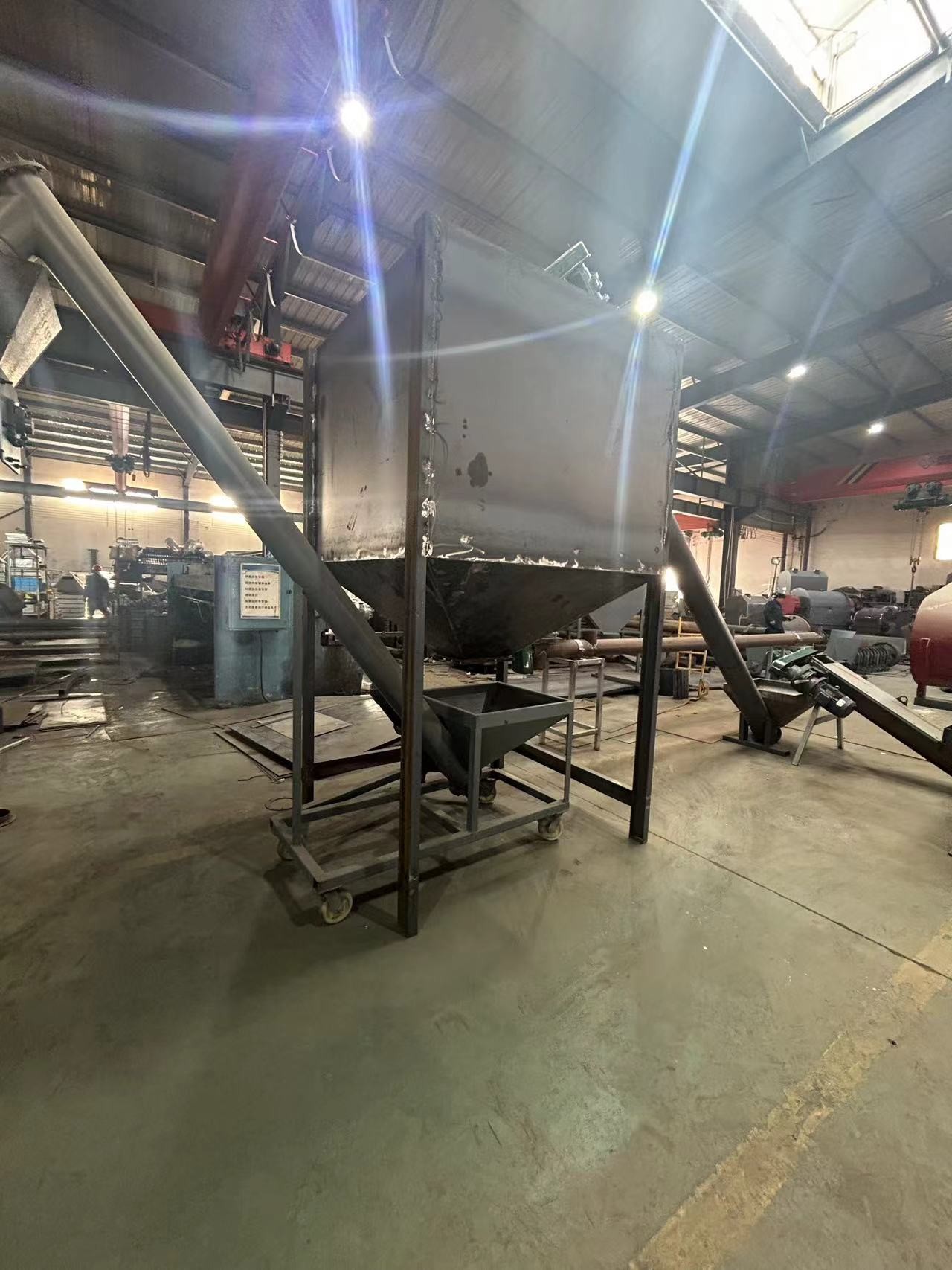

Bunker configuration

Customized size according to equipment requirements.

Screw configuration

All screws adopt 2.2kw-6p motors, and the dimensions are customized according to the  equipment requirements.

Dust removal equipment configuration

During normal operation, dusty gas enters the dust collector through the suction port. In this process, dust is trapped on the outer surface of the filter cartridge, clean air enters the clean air

chamber through the center of the filter cartridge, and then passes through the outlet. Mouth discharge. When the filter cartridge is cleaned, the pulse controller will

automatically select one or more pairs at regular intervals.

When the filter cartridge is cleaned, the controller will open the electromagnetic pulse valve, and the high-pressure air will be directly

Rush into the center of the selected filter cartridge and clean the dust collected on the surface of the filter cartridge. Dust follows the main airflow

Flow in the direction and fall into the ash hopper under the action of gravity.

In addition: thebrands and series of main components in the distributioncabinet need to be explained: inverter brand Gretel series, Chint plastic case circuit breaker, switch Chint series and contactor Chint series.
